Wireless gutta percha obturator filling system
The obturator handpiece is a handheld device designed to hold and deliver a heated filling material called gutta-percha.
It plays a pivotal role in the final step of a root canal procedure, which is the filling and sealing of the cleaned and disinfected root canals.
Technical info
| Parameter | Specification |
|---|---|
| Power | Lithium battery |
| Battery Life | 2600 mAh |
| Charging Time | 4 hours |
| Ready Temperature | 200°C in 20 secs |
| Temperature Range | 100-200°C |
| Display | LCD |
| Extrusion Control | 3 speeds |
| Handpiece Rotation | 360° |
| Auto-Cleaning | Yes |
| Needle Sizes | 25Ga, 23Ga |
| Needle Material | Silver |
| Pre-Bendable Needles | Yes |
| Weight | Lightweight wireless |
| Warranty | 1 year |
Uses:
The primary and most crucial use of an obturator handpiece is to fill the prepared and disinfected root canals with gutta-percha
Obturator handpieces help create a three-dimensional seal within the root canals.
The use of obturator handpieces makes the root canal filling process more comfortable for both the dentist and the patient.
Features
- Wireless electric gutta percha extrusion for uniform filling without air bubbles
- Fine and consistent gutta percha extrusion
- Effective canal filling: auto-cleaning removes residual gutta percha, extrusion stops immediately to prevent leakage
- 2600mAh lithium battery
- Adjustable heating temperature from 100-200°C, accurate real-time display of gutta percha amount
- Ready in 20 secs at 200°C, fully charges in 4 hours
- Pre-bendable high strength silver needles for more uses, 360° rotatable for better control
- 3 extrusion speeds for personalized operation
- Battery allows for 50 canal filling treatments

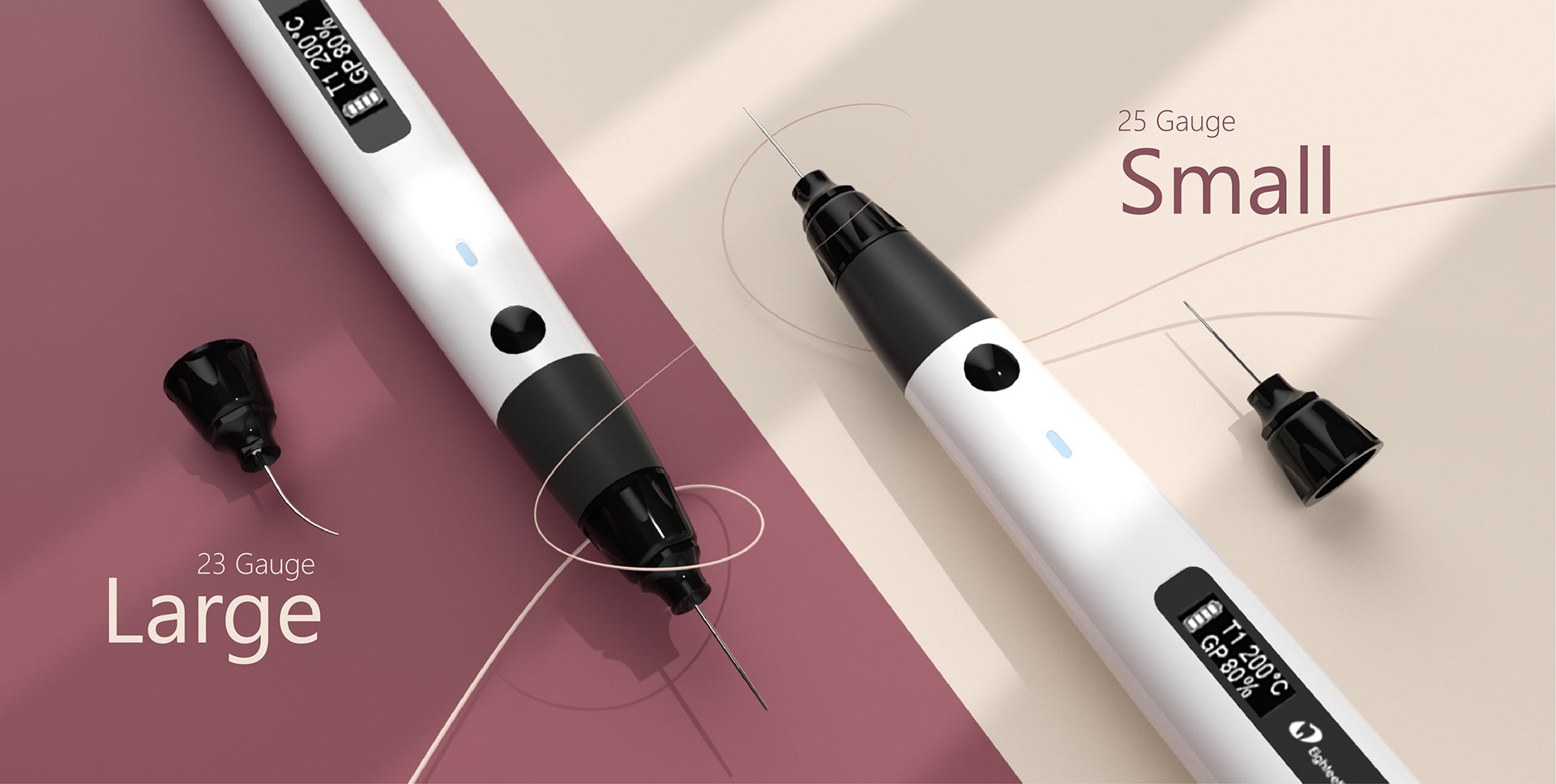

- 25Ga and 23Ga gutta percha needle sizes
- Hex wrench for bending tip, rotating tip, and cleaning
Maintenance:
- Use hex wrench to pre-bend silver needles
- Clean needles: Reverse-twist hot needle off handpiece, use forceps to clear residual gutta percha in needle
- Clean handpiece: Use forceps to remove overflow gutta percha around opening, unscrew cleaning nut with hot handle and hex wrench to clear residual gutta percha inside
