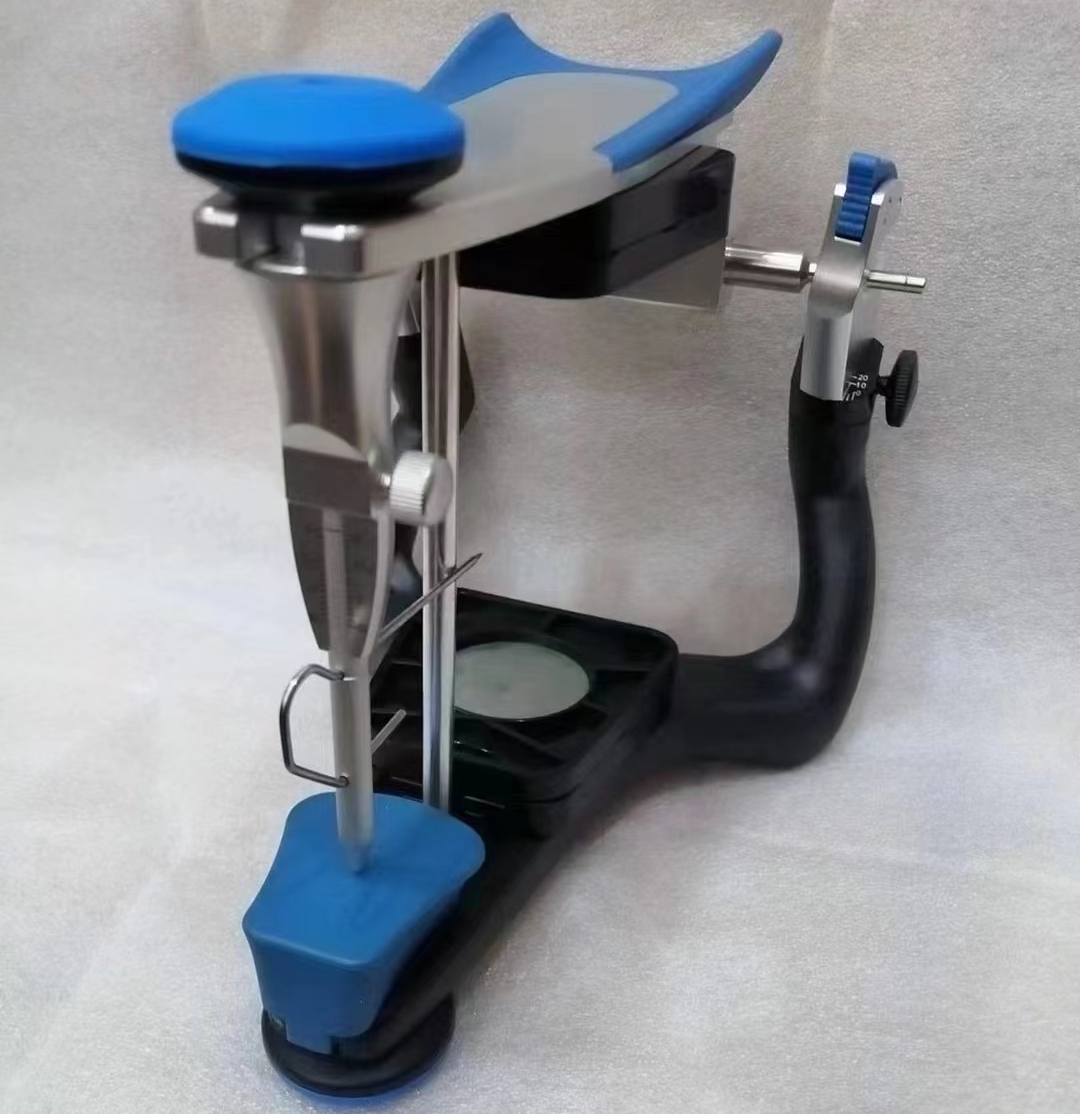

Replica Dental Articulator With Magnetic Splitex System
Replicate natural mandibular motion with precision using the Centricor articulator. Customizable condylar guidance and Bennett angle settings allow you to match individual patient dynamics. Condylar guidance is adjustable up to 60° while Bennett angle can be set from 0-20°.
Incisal guidance is also adjustable from -5 to +10 mm to match patient occlusion. This full range of customization provides accurate simulation for restorative treatments.
The Centricor seamlessly integrates with Splitex and Artex mounting systems. Magnetic model plates firmly secure the upper and lower dental casts while allowing quick, easy mounting.
Starting from a comfortable centric relation position, the Centricor produces reproducible movements for natural mastication, protrusion, and lateral excursions. Dual lateral condylar guidance duplicates smooth mandibular motion.
Clinicians can have confidence that restorations fabricated using the highly accurate Centricor will fit perfectly and function optimally inside the patient’s mouth.
Specifications
| Feature | Specification |
|---|---|
| Construction Material | Carbon fiber |
| Base Design | Integrated magnetic model plate system |
| Stability | Feathery carbon provides precision and reproducibility |
| Centric Position | Safe reproducible start and end position for movements |
| Work Area | Large space for installing models |
| Functional Parts | Precise parts made of aluminum and stainless steel |
| Tilt Resistance | 3 working positions |
| Compatibility | Synchronizes with Splitex system |
| Delivery Includes | Main unit, incisal guidance pin, incisal needle,
incisal guidance table, support pin, 2 model plates with retention discs |
| Type | average value articulator |
| Centric Closures | With centric click closures |
| Construction Height | 126 mm |
| Bonwill’s Triangle | 110 mm side length |
| Sagittal Condylar Inclination | Fixed at +35° |
| Condylar Inclination Radius | 19 mm |
| Bennett Angle | Adjustable 0° to +20° |
| Incisal Guidance | Adjustable -5 to +10 mm |
| Incisal Guidance Table | 0° |
