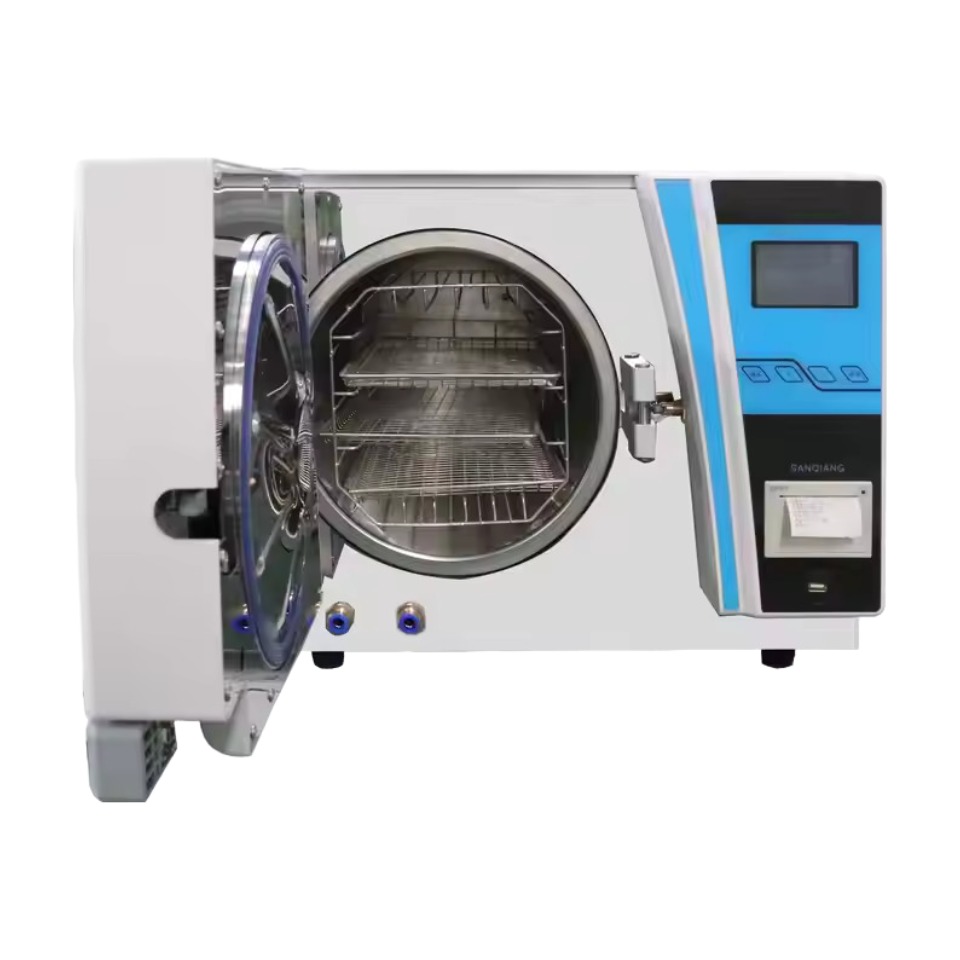

Dental Autoclave Machine
Our dental steam sterilizer designed with a built-in steam generator ensures a better sterilization effect. The products with LCD screens display the working time, temperature change, pressure, and other operating states condition for different stages procedures: exhausting, sterilization, and drying applied in dental clinic tools and instruments for the next dentistry treatment application.
The dental autoclave machine door lock system is an automatic safety door lock that prevents the door from opening while under high pressure.
The dental autoclave machine sterilization chamber is made of polished stainless steel, the sterilization data can be stored either via USB or the printer which can be printed.
High Light Design
Durable components ensure the daily use:
- Overheat control: When the inner temperature is overheated, power will be shut down automatically and the alarm system
- Overpressure control: it has an alarm system when overpressure.
- Safety door lock system
- Low water level indicator: It has an alarm system when low water
Component features:
| Accessory | Description |
|---|---|
| Super Vacuum Pump | – Working efficiency is fast
– Ultimate vacuum can reach -90KPa – Temperature resistance up to 90°C – Passed life aging test over 20,000 times |
| Temperature Protection System | – Uses Texas ultra-high temperature limiter
– Controls temperature between 100-200°C – Provides accurate data – Safe to use |
| Innovative Steam Generator | – New concept solves previous blocking, seal aging and leakage issues
– Safely and reliably generates steam – Steam heating water tank speeds up sterilization time |
| Exclusive Safety Valve | – Automatically releases pressure over 260KPa
– High safety performance |
| Solenoid Valve | – Uses original imported CEME solenoid valve from Italy
– Large flow aperture – High temperature resistance – Pressure over 6Kg – Long service life |
| Double Cooling Unit | – Double drain cooling device
– Used with exhaust condenser – Greatly improves equipment performance |
Technical
| Chamber Dimensions(mm)(Φ × D) |  250× 355 |  250× 465 |
| Chamber Capacity(liter) | 18L | 23L |
| Overall Size(cm)(L× W× H) | 660× 445× 450mm | 660× 445× 450mm |
| Heating Power | Â Â 1500W | Â 2000W |
| Net Weight(KGS) | 49 | Â 54 |
| Gross Weight(KGS) | Â 59 | Â Â 65 |
| Packing Size(cm) | 700× 500× 500mm | 700× 500× 500mm |
| Minimum Desk Size(cm) | 70× 50 | 70× 50 |
| Power Supply | 110/220± 10%, 50/60HZ, 10A | |
| Sterilize Temperature | 121/134 | |
| Sterilize Time | Please refer to different programs | |
| Dry Procedure | Vacuum   drying | |
| Sterilizer Construction | Stainless steel | |
| Water tank | Â internal | |
| Stainless steel instrument container: |  2 trays | |
