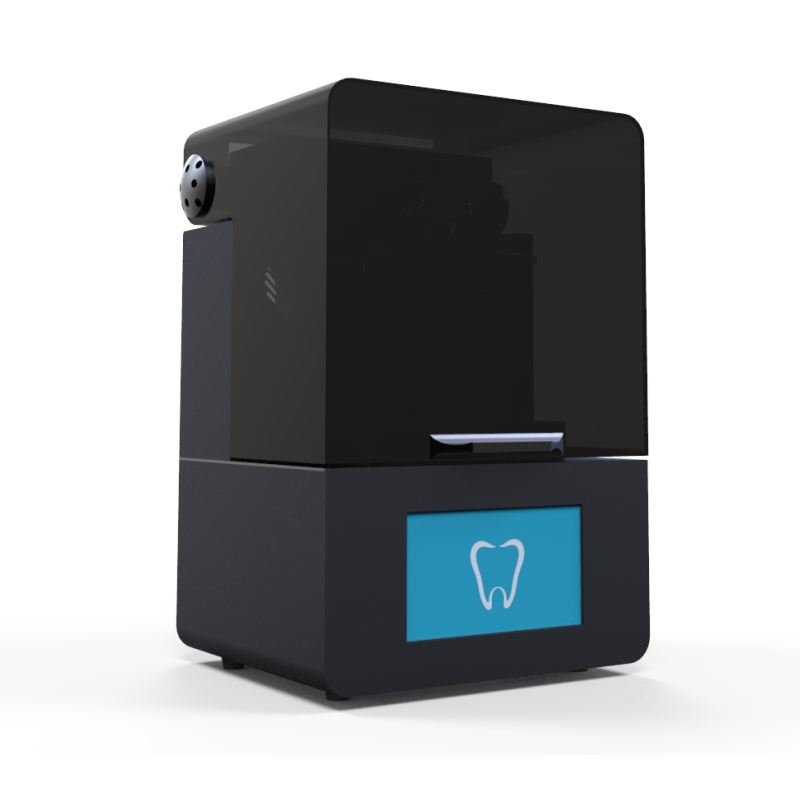

LED Curing Light Dental 3D Printer
Our cutting-edge 3D dental printer, designed for precision and efficiency in dental laboratories. Our printer utilizes DLP (Digital Light Processing) molding technology, which guarantees high-quality and accurate prints. Here are the technical specifications and benefits of our printer:
Technical Data:
- Data input format: STL, SLC
- Light source: 54P matrix parallel UV LED light
- Forming space: 228 x 128 x 240mm
- Layer Thickness: 0.02 mm-0.15 mm
- Print XY Accuracy: 0.025mm/25um
- Z-axis accuracy：0.00125mm/1.25um
- Print Speed Range: 15-120mm/h
- Net weight: 19Kg
- Overall dimension: 366x310x576mm
- Resolution: 10.3-inch 7680×4320
- Supporting printing model: resin teeth, restorative model, orthodontic model, inner and outer wax model, veneer wax model, surgical guide plate, temporary crown, etc.
Benefits for Dental Laboratories:
- High Precision: Our printer can produce prints with an XY accuracy of 0.025mm/25um and Z-axis accuracy of 0.00125mm/1.25um, ensuring that even the smallest details are captured in the final product.
- Fast Print Speed: Our printer has a print speed range of 15-120mm/h, allowing for quick turnaround times on projects.
- Large Forming Space: With a forming space of 228 x 128 x 240mm, our printer can handle larger printing projects than many other dental printers on the market.
- Versatile: Our printer supports a wide range of printing models, including resin teeth, restorative model, orthodontic model, inner and outer wax model, veneer wax model, surgical guide plate, temporary crown, and more, making it an all-in-one solution for dental laboratories.
- High-Resolution Display: Our printer comes with a 10.3-inch 7680×4320 resolution display, providing a clear and detailed view of the printing process.
