The Best Features Of Endo Motor, Prices, And Attachment

All-in-one Ultrasonic Scaler Scaling-Periodontic-Endodontic

Endodontic Motor In Dentistry

Endodontic motors are tools that make the endodontic procedure easier since they enable mechanically activated files. This makes the preparation of canals even more incredibly quick and convenient. A central body that controls the gadget, a micromotor, a contra-angle to which the various files are suited, and occasionally a pedal that enables you to operate the various functions with your foot make up these devices. Reciprocal rotation, also known as alternating rotation, is a process that advocates for secure channel preparation since it lessens torsional stress and the number of instruments needed per channel.

Best Endo Motor High Light Design Functionality

The use of mechanically powered files is made possible by endodontic motors, which are tools created to make the endodontic procedure easier. As a result, the endodontist can prepare the endodontic canals more quickly and conveniently. Endomotors are tools used in rotational endodontic operations, where dentists only need to use one file to properly form the root canal. There are numerous kinds of endomotors with various features.

Healthcare professionals can measure the root canal length and obtain more advanced dental files during the preparation with the help of endo motors and apex locators. The endo motor with apex locator helps speed up and improve the effectiveness of root canal therapy. It can be used to measure canal length or as an endomotor for shaping and enlarging root canals. It can be used to widen the canals while keeping an eye on where the file tip is located inside the canal. operates under the premise that the translucent dentin in the root canal creates an electrical resistance across the walls of the canal. The root canal walls of the tooth show an increasing electrical resistance that is larger apically than coronally.

Speed, torque, apex sensitivity can be adjusted for each procedure

Best performance features:

  1. Brushless Motor Technology: Provides powerful, efficient, and reliable performance.
  2. Variable Speed Control: Allows users to adjust rotational speed from 120 to 1000 RPM.
  3. Variable Torque Control: Allows users to adjust torque from 0.5 to 4.0 Ncm.
  4. Integrated Apex Locator: Enables accurate working length determination. Adjustable sensitivity.
  5. Auto Start/Stop: Motor starts and stops automatically when file reaches working length.
  6. Auto Apical Slow Down: Motor slows down when file approaches working length.
  7. Auto Apical Reverse: Motor reverses direction when file reaches working length to avoid apical perforation.
  8. 11 Customizable Memory Settings: Stores personalized settings for speed and torque.

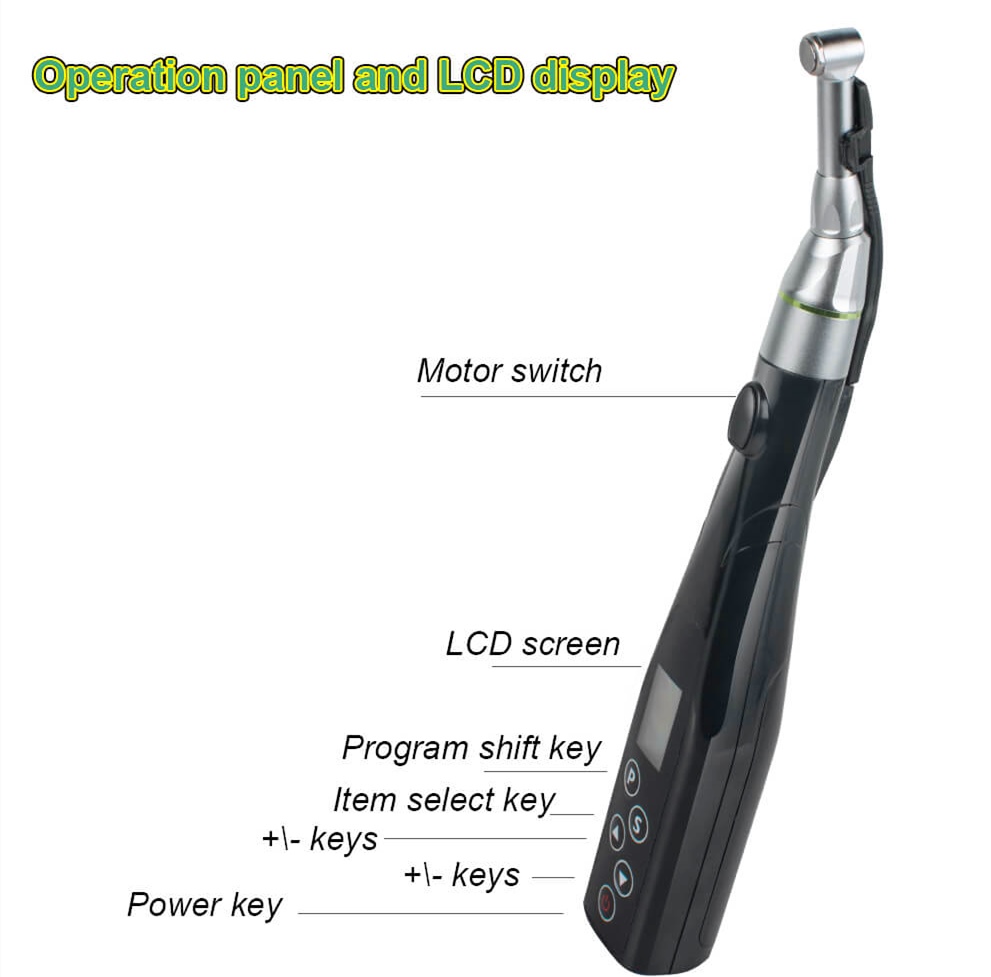

  9. LCD Display: Provides clear visualization of settings, speed, torque, etc.
  10. 1:1 Contra-Angle Handpiece: Provides efficient power transfer and access.
  11. 1500 mAh Battery: Provides cordless convenience and portability.
  12. Ergonomic Design: Comfortable and easy to handle. 340° swiveling contra-angle.
  13. Torque Calibration: Protects against file separation and root canal damage.

Benefits on root canal procedure treatment:

Advanced brushless motor technology provides precise torque control and efficient cleaning of root canals.

Integrated apex locator enables accurate working length determination. Auto apical reverse prevents file separation and perforation.

Multiple speed/torque settings allow customization for optimal canal shaping.

Ergonomic handpiece improves access and visibility.

Overall, the advanced features of endo motors improve clinical outcomes and simplify root canal procedures.

Digital Apex Locator

Electronic apex locators help where radiographic methods are problematic and cut down on the number of radiographs needed. They might also show instances in which the radiographic apex is some distance from the apical foramen. The identification of root canal perforation is one of the additional functions.

root canal apical measuring and expanding model works together
Complete set: endo motor + mini 16:1 contra-angle handpiece + build in apex locator
endo motor works with apex locator
Endo motor connects with apex locator

There are three types of contra-angle handpiece attachments that can be used with an endo motor.

Endomotors are tools used in rotational endodontic operations, where dentists only need to use one file to properly form the root canal. Endomotors come in a variety of forms with various features.

Torque, which can be thought of as a parameter for the stress generated, is defined as the force necessary to rotate the NiTi rotary/reciprocating file. Regardless of the root canal circumstances, the endodontic engine maintains a consistent rotational speed by modulating torque.

The endo-Mate DT series by Dental Lab Shop offers a variety of gear ratios (20:1, 16:1, 10:1, 4:1, and 1:1), with a one-year warranty. Technical Information Number of Programs: 9, Power Supply: AC 230 V 50 Hz, and Battery Pack. 7 Ncm Maximum Torque (When Using 20:1 Head). Range of speeds: 100-13,000 min-1 (with 20:1, 4:1, 1:1 Geared Heads).

The manufacturers have suggested a range of speeds for various rotating instruments. The speed range for endodontic motors ranges from 150 rpm to 40,000 rpm for more modern engines.

A standard price of an endo motor might cost anywhere from USD 379 to USD 1225.

Electric endo motor handpiece attachments are popular model options.

  • ENDO D1 ratio 1:1:- When there is a gear ratio of 1:1, the engine and ring gear rotates at the same speed. For this specific example, you are operating your car with a 0:0 final drive ratio and a 0:0 axle ratio, known as a direct drive. The motor powering a low-speed handpiece controls how quickly the bur rotates. When connected to an electric motor, a 1:1 ratio low-speed will revolve the bur at a maximum speed of 40K rpm; when connected to an air motor, it will rotate at about 20K rpm.
  • ENDO R16 gear ratio16:1:- Endomotor Handpiece 16:1 Rotating NiTi files can be used with the head and designed to make executing root canal therapy by an endodontist as efficient and effective as possible. The operator manages both coronal and apical pressure. You can utilize a tiny push-button head. Ni-Ti file miniature head (2.35) NiTi rotary files are used with a push button chuck. As you are using a 16:1 handpiece, your maximum RPM will be 800, without considering the endo motor’s display settings.
  • ENDO R20 gear ratio20:1:- For dental needs in dental surgery, a 20:1 endo motor handpiece is used. Any other usage is dangerous and should not be done. Pre-set torque levels are 75% and 100%. Program count: 5. Torque maximum: 4 NCM ( when using 20:1 head) RPM range: 100 to 2250.
All-in-One System for Scaling, Periodontics & Endodontics
All-in-one Ultrasonic Scaler Scaling-Periodontic-Endodontic

This advanced device delivers powerful 25kHz-42kHz ultrasonic vibrations and intelligent handpiece for precision cleaning and treatment. It is excellent at removing plaque and tartar and can also be used for endodontic procedures like root canal preparation with its slim endo tips.

The blue-colored endo handpiece of the motor system comes with E3-S, E7-S, E30-S, E31-S, E3-SD, and E6-SD endo tips in a blue ring, which can be used for irrigation and debridement of fine root canals.

scaler tips accessories
